Digisol DG-KB4208D Rackmount Combo KVM Switch

Photos
Videos

Report

Cancel

Posted On 05/08/25, 11:26 AM

❮ ❯

Additional Details

Brand : Others

Description

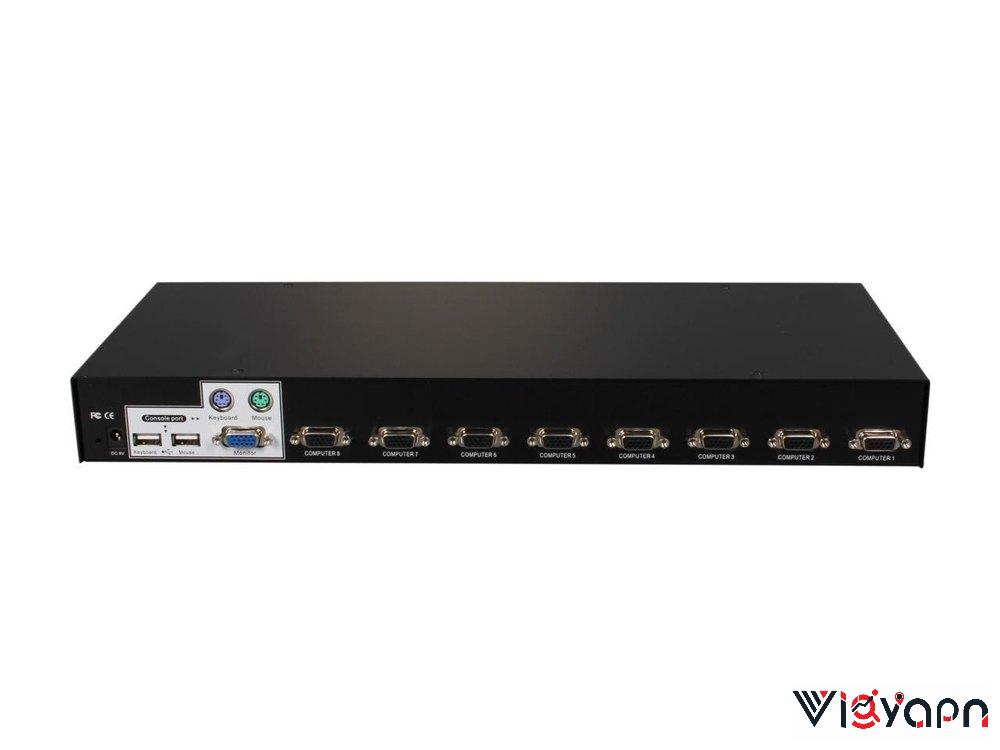

Brand Digisol Model Name/Number DG-KB4208D Dimension 410 x 165 x 44.5mm (L x W x H) Series Breton PC Connections 8 Console Connections 1 Daisy-Chain Port 2 (1 x In; 1 x Out) Daisy-Chain Level 8 Max. PC Connections 120 PCs (1 x DG-KB4208D + 7 x DG-KB4216D) OSD Yes PC Selection Method Push Buttons/Hotkeys PC Port Indicators LED VGA Resolution 2048 x 1536 Power Adapte DC 9V Weigh 1900gm Availability In Stock DIGISOL DG-KB4208D allows control of up to eight computers from a single set of keyboard, monitor and mouse. The Keyboard and Mouse interfaces can be either PS/2 or USB. Thus, this device reduces the number of devices in the rack and the clutter caused by the connecting cables. This is ideally suited for usage in server room or data center Digisol Cascadable Rackmount Combo KVM Switch with OSD is allows control of up to eight computers from a single set of keyboard, monitor and mouse. The Keyboard and Mouse interfaces can be either PS/2 or USB. Thus, this device reduces the number of devices in the rack and the clutter caused by the connecting cables. This is ideally suited for usage in server room or data center. The DG-KB4208D uses a unique integrated Cable/Connector design for connectivity. The Combo Cable/Connector design eliminates the requirement of individual cables for connecting the Keyboard, Monitor and Mouse ports from the PC to the KVM switch, which further reduces the cable clutter. The DG-KB4208D can be cascaded with seven additional DGKB4208D or DG-KB4216D. This cascading will enable usage of a single set of Keyboard, Monitor and Mouse to control upto 120 PCs/Servers. The KVM switch provides an audible indication whenever there is a switching of PCs/servers. This acts as a confirmation for the user. The front panel of the KVM includes a LED display unit for port status monitoring and certain configuration. The DG-KB4208D has a rack mountable design for easy installation in a standard 19" rack. This makes the KVM switch an ideal device for a server farm/data center environment. The DG-KB4208D is usable out-of-the-box. Only the KVM cables need to be connected for the operation of the switch. No software installation or configuration required for normal operation. Product Features & Compliances: • 8-port 19" Cascadable Rackmount USB PS/2 KVM switch with OSD • Cascadable up to 8 levels using daisy-chain cable • Scalable up to 120 PCs/Servers • USB and PS/2 interface support on both console and PC side Call 8048605848
