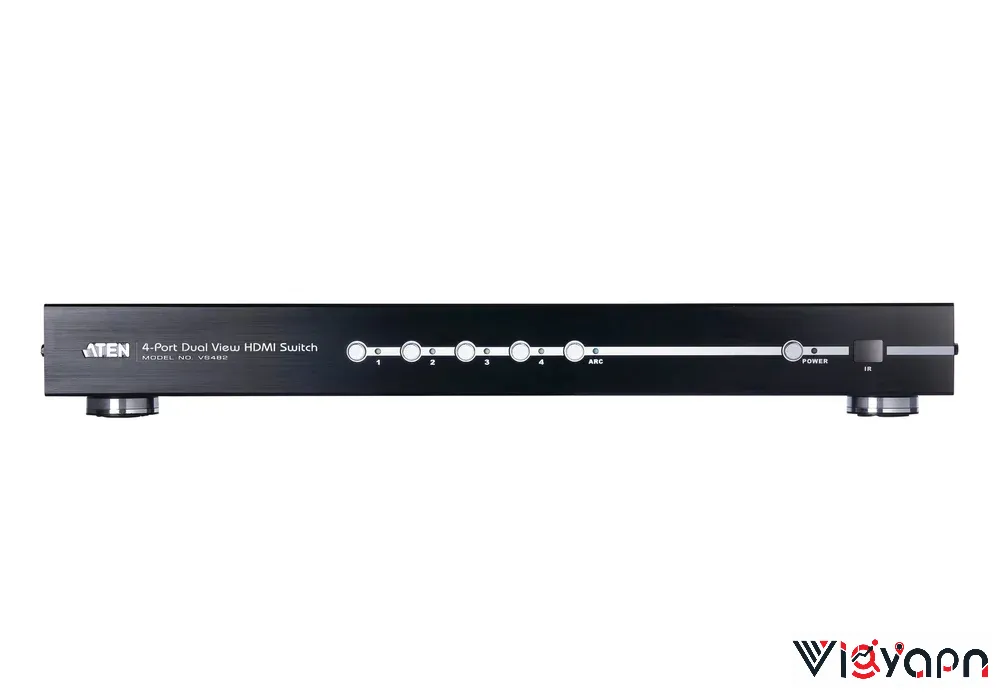

ATEN 4-Port HDMI Switch with Dual Output VS482

Photos
Videos

Report

Cancel

Posted On 05/08/25, 11:53 AM

❮ ❯

Additional Details

Brand : Others

Description

Number Of Ports 4-Port Dimension 43.72 x 15.86 x 4.40 cm Operating Temperature 0 - 50 DegreeC Brand ATEN Warranty 3 Year Availability In Stock Video Input Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3m @1920*1080@60 (4:4:4) Video Output Interfaces 2 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 15m @1920*1080@60 (4:4:4) Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Audio Return Channel, Deep Color) HDCP Compatible Consumer Electronics Control (CEC) Max. Resolution Up to 1080p Audio Input 4 x HDMI Type A Female (Black) Output Analog: 2 x RCA (Red / White) Digital: 1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange) Control RS-232 Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No IR 1 x Mini Stereo Jack Female (Black) EDID Settings EDID Mode: Default / Port1 / Auto Connectors Power 1 x DC Jack Power Consumption DC5.3V:5.74W:27BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 2.17 kg ( 4.78 lb ) Dimensions (L x W x H) 43.72 x 15.86 x 4.40 cm (17.21 x 6.24 x 1.73 in.) Carton Lot 3 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Call 7942835133
